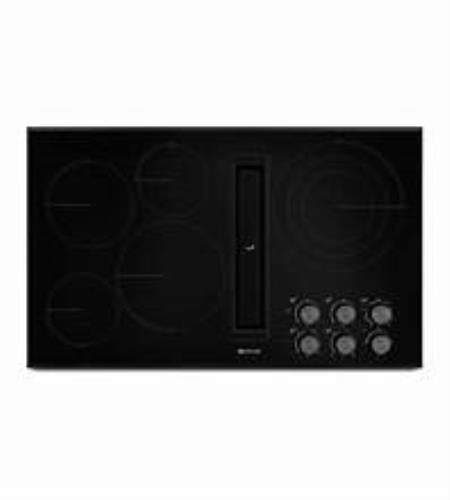

Overview
Design Type: Black Glass
Cooktop Type: Downdraft
Fuel Type: Electric Radiant
Size: 36"
Control Location: Right Front
Controls: Knobs
Infinite Heat Controls: Yes
Knob Color: Black
Knob Type: Metal
Automatic Pan Detection: No
Digital Display: No
Downdraft Vent: Yes
Griddle: NA
Heating Element On Indicator Light: Yes
Hot Surface Indicator Light: Yes
Installs Over Built-In Oven: No
LP Convertible: No
Power Boost: No
Power Outage Compatible: No
Selections: Convertible to Duct-Free Ventilation, JX3™ Downdraft Ventilation System with 3-Speed Fan
Coooktop Details
Cooktop Element Style: Radiant
Cooktop Surface Color: Black
Cooktop Surface Material: Ceramic Glass
Number of Cooking Element-Burners: 5
Number of Open Bays: NA
Center Front Element-Burner Power: 3200W
Center Front Element-Burner Size: 10"
Center Front Element-Burner Type: Single
Center Rear Element-Burner Power: 1200W
Center Rear Element-Burner Size: 6"
Center Rear Element-Burner Type: Single
Left Front Element-Burner Power: 1300W
Left Front Element-Burner Size: 6"
Left Front Element-Burner Type: Hyper
Left Rear Element-Burner Power: 1800W
Left Rear Element-Burner Size: 8"
Left Rear Element-Burner Type: Single
Right Rear Element-Burner Power: 3000W/1950W/1050W
Right Rear Element-Burner Size: 12"/9"/6"
Right Rear Element-Burner Type: Triple
CFM Motor Class: 310
Number of Speeds: 3
Certifications
ADA Compliant: Yes
Prop 65: Standard
UL: UL
Electrical Requirements
Amps: 40
Power Cord Included: No
Volts: 220
Dimensions and Weight
Cutout Depth: 21 1/8"
Cutout Width: 34 9/16"
Depth: 22 1/16"
Height: 3 11/16"
Width: 36 5/16"
Carton Depth: 26 7/16"
Carton Height: 23 13/16"
Carton Width: 41 1/2"
Gross Weight: 82 lbs
Net Weight: 69 lbs

Features:

JX3™ Downdraft Ventilation System with 3 Speeds

• Developed and refined by the Jenn-Air brand, a downdraft ventilation system uses proximity ventilation to capture smoke, steam and odors at the cooking surface, whisking them down and out of the kitchen before they can escape.

Perimetric Extraction

• This sophisticated design is not only attractive, it is the secret behind the ventilation system's exceptional performance and quiet operation.

12"/9"/6" Triple-Choice™ Element

• This three-tiered element reaches a high of 3,000 watts at its highest setting and can reach a low of 1,050 watts allowing you to experience the ultimate versatility in power levels and heating efficiency, accommodating various-sized cookware.

DuraFinish® Glass Protection

• DuraFinish® Glass Protection helps keep your ceramic glass cooktop's surface looking like new by resisting scratching.

Convertible to Duct-Free Ventilation

• Keep the view from your kitchen open and free from ductwork with this optional kit that allows conversion to duct-free ventilation.

Die-Cast Metal Knobs

• Robust, die-cast metal knobs offer precise control and color-coordinate with either the Euro-Style Stainless or Black design of these cooktops.
